FW Panel

FW Panel is a 1 1/2″ deep flush metal panel designed for use in vertical and horizontal applications.

Available 12″ panel width options include: vee grooves, inverted plank, reveals of up to 3″, or a traditional smooth appearance. Regardless of the pattern, the 1 1/2″ depth and the tongue-and-groove engagement remain the same.

  • Maximum Length
    • 24 GA 2′ minimum and 8′ maximum
    • 22 GA 2′ minimum and 15′ maximum
  • Note* Oil canning is a natural occurrence in metal panels and is not a cause for panel rejection.
  • Panel widths: 12″

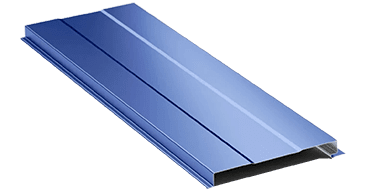

  • Pan configurations: Inverted Plank, Flat, Vee Grooves
  • Reveal Options: 1″ to 3″ (panel remains at 12″ and reveal size increases coverage)
  • Coating: Kynar 500® (PVDF)
  • Substrate:
    • Standard 24 GA Galvalume®
    • Optional 22 GA Galvalume
