Medallion I and Medallion II Batten Seam Panels

Medallion I and Medallion II Batten Seam Panels

Medallion I and Medallion II are architectural standing seam systems which utilize separate batten caps that are installed over adjoining roofing panels. Medallion I features a narrow batten cap while Medallion II features a wider cap. Both Medallion systems are installed over solid decking. Medallion I can also be curved to meet radius panel specifications.

• Minimum slope (with sealant): 3:12
• Installation: Must be over solid deck

• Curving: Medallion I only – minimum radius 30″
• Note* Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
• Panel width: 12″, 16″ and 18″

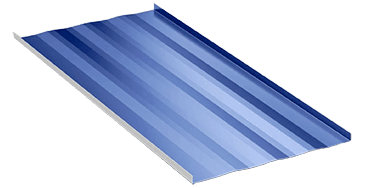

• Panel configurations: Striated, Ribbed or Flat Pan (Striated recommended)
• Coating: Kynar 500^® (PVDF)
• Substrate: Standard 24 GA Galvalume^®

Curving Information

• Medallion I Battens can be curved
• Minimum radius:  30”
• Curving equipment can be shipped directly to the job site to allow onsite curving
• Developmental Industries (DI) will bill directly for all equipment rental
• Medallion I flat panels will curve naturally on a radius of 24’ or greater
