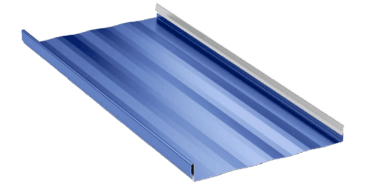

Medallion-Lok Snap Lock Panels

Medallion-Lok effectively captures the beauty and elegance of a standing seam roof. Adding curb appeal to any project, the narrow 1.75″ tall standing seam creates crisp, clean visual lines. Medallion-Lok features hidden clips and a snap-together seam which eliminates the need for jobsite seaming. While primarily a commercial panel, Medallion-Lok is also an excellent choice for larger, custom homes.

  • Minimum slope: 3:12
  • Sealant: Factory Applied
  • Installation: Can be installed over solid deck or open framing
  • Note* Factory formed eave notch upon request in: Clinton, Peachtree City and Sunnyvale. Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection.
  • Panel width: 12″, 16″ and 18″
  • Panel configurations: Striated, Ribbed or Flat Pan (Striated recommended)
  • CoatingKynar 500® (PVDF)
  • Substrate:
    • Standard 24 GA Galvalume®
    • Optional 22 GA Galvalume
    • Optional .032 aluminum
