Multi-Rib Panel

Multi-Rib Panel

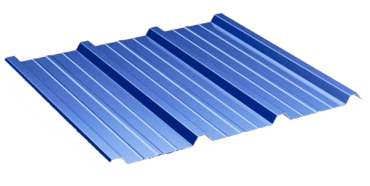

Multi-Rib is McElroy’s proprietary version of the industry’s standard R-Panel and is a multi-use roof and wall rib panel primarily used in pre-engineered metal building applications. An optional purlin bearing leg (PBR) rests on purlins and provides support for fastening the panel lap.

Multi-Rib is also commonly utilized for residential roofing, primarily in the Southwestern region. Featuring 1 1/4″ major ribs, 12 inches on center, Multi-Rib’s bold profile adds a distinct beauty to any home.

• Minimum slope (with sealant): 1:12
• Note* Multi-Rib is also available with MoistureLok. Oil Canning is a natural
  occurrence in metal panels and is not a cause for panel rejection.
• Panel Options: 26 Ga: PBR and Non PBR. 24 & 22 Ga: Non PBR
• Coating:
  • Kynar 500^® (PVDF)
  • Silicone Modified Polyester (SMP)
• Substrate:
  • Standard 26 GA Galvalume^®
  • Optional 24, 22 GA Galvalume
