R Panel

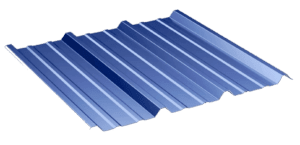

Because R-Panel is very versatile and utilized on a wide variety of applications, it is available in many options. R-Panel is available with and without purlin bearing legs (PBR). Typically, PBR panels are utilized on roof applications because roofers appreciate the extra support when installing the panels to the roof substrate, or deck. Non-PBR panels are more common for wall applications.  Building owners can select R-Panel in a wide range of Kynar 500® colors or silicone-modified polyester coatings. R-Panel’s most popular steel substrate is 26 GA Galvalume®. Or select optional 22- or 24-gauge Galvalume® panels.

  • Minimum slope (with sealant): 1:12
  • Note* Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
  • Roof panels: purlin bearing leg required
  • Wall panels: non-purlin bearing leg optional
  • Coating:
    • Kynar 500® (PVDF)
    • Silicone Modified Polyester (SMP)
  • Substrate:
    • Standard 26 GA Galvalume® (roof and wall panels)
    • Optional 24, 22 GA Galvalume (wall panels only)
