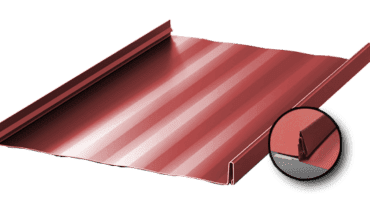

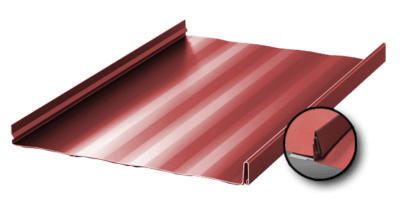

Architectural Snap Lock Panels
SS 450

Integrating the aesthetic appeal of an architectural panel and the ease of installation found on the snap-on configuration, the snap-lock has become the go-to choice for architects, contractors, and building owners alike. The male/female joint profile provides simple installation while offering a UL90 wind rating and structural performance. Typically recommended for applications having a 3:12 pitch or greater and can be installed over a solid substrate oropen framing. Please contact National Metal Sales for complete test results.

  • 1-1/2” Nominal Height
  • Standard 12”, 16”, and 20” Widths
  • Standard 24 GA. Prefinished Steel
  • 30 year “Non-Pro-Rated” limited Coolr Kynar 500 Paint Warranty
  • Concealed Clips
  • Minimum Slope 3:12
  • Custom Lengths Rolled On-site
  • UL Approved 580 Class 90
  • Install over various substrates
