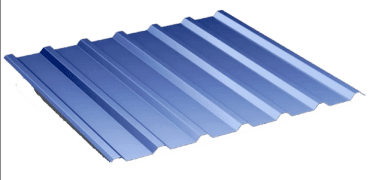

U Panel

U-Panel is an exposed fastened wall and roof panel. With a ¾” (approximate) rib height and 6” on center rib spacing, U-panel offers a lower profile and softer appearance than R-Panel or Multi-Rib. U-Panel is widely utilized as a liner panel or partition wall.

  • Minimum slope (with sealant): 1:12
  • NoteOil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
  • Roof panels: purlin bearing leg required
  • Wall panels: non-purlin bearing leg optional
  • Coating:
    • Kynar 500® (PVDF)
    • Silicone Modified Polyester (SMP)
  • Substrate:
    • Standard 26 GA Galvalume® (roof and wall panels)
    • Optional 24 and 22 GA Galvalume (wall panels)
    • Optional 29 GA Galvalume (Liner Panels – Narrow Coverage)
